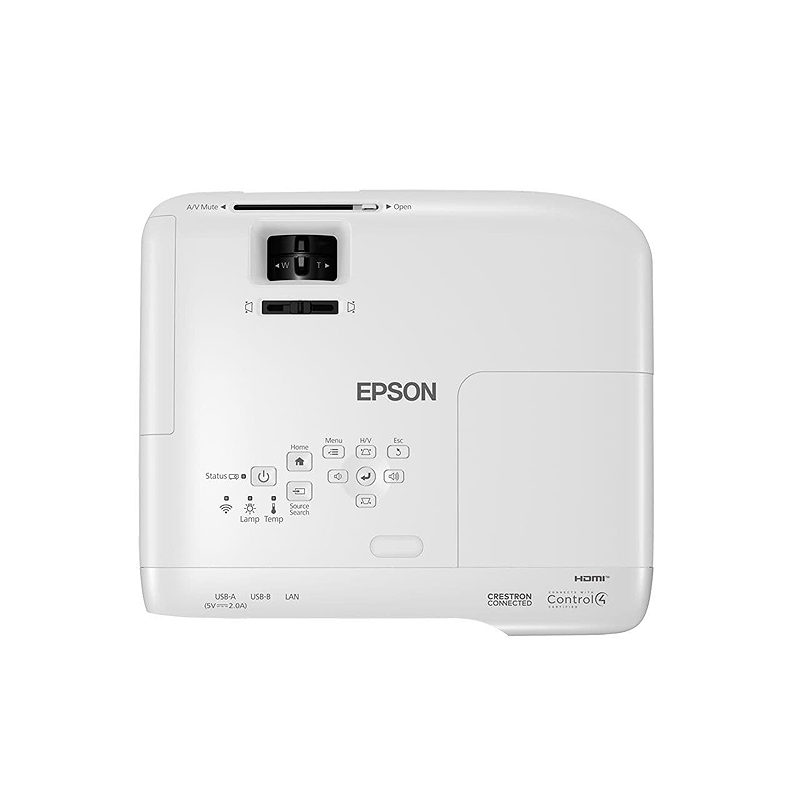

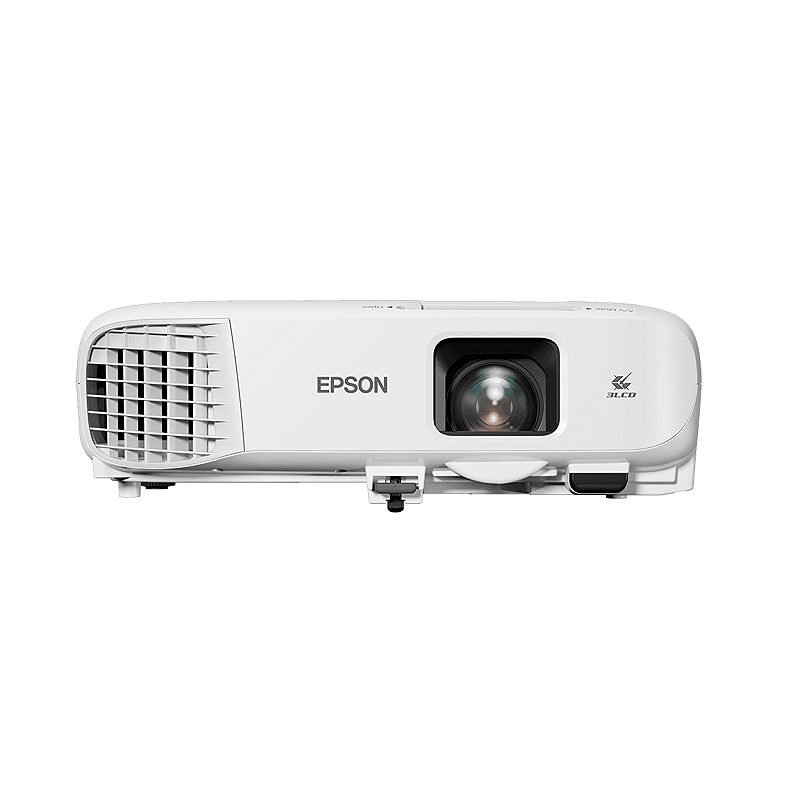

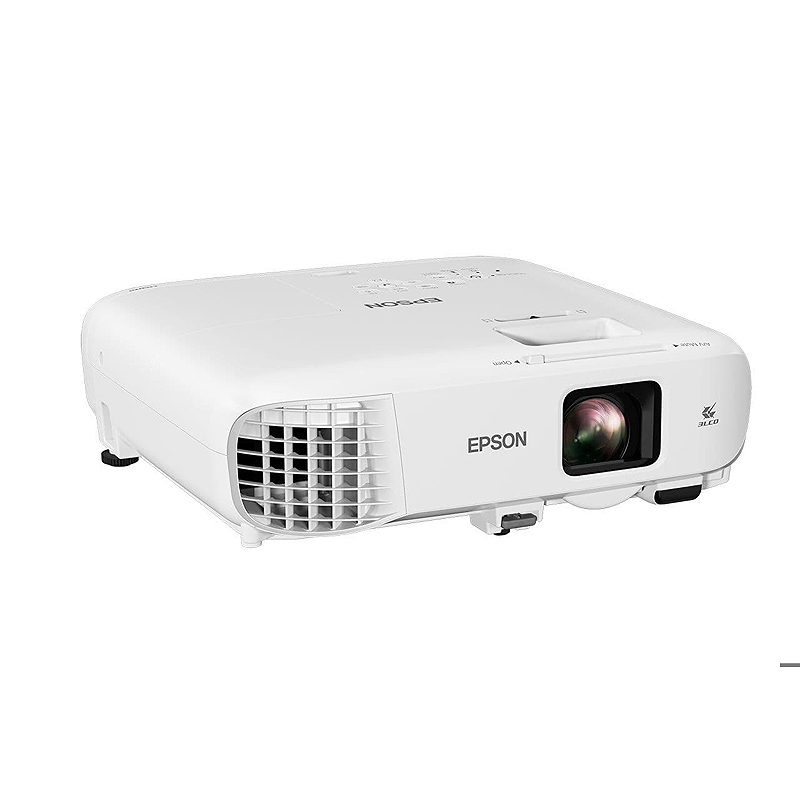

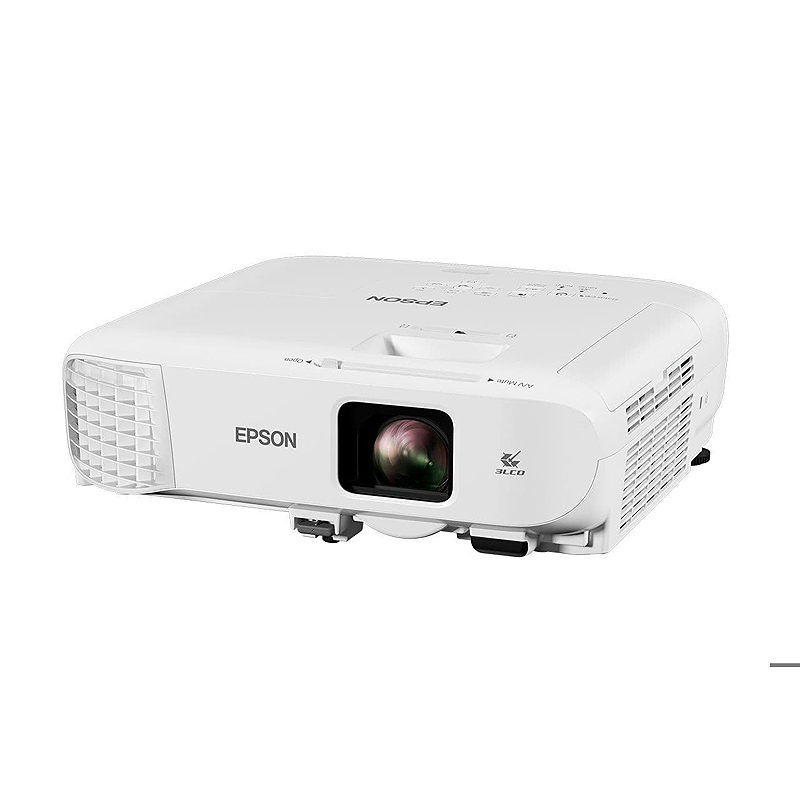

Projektør
| Smart projektor | Ingen |
| Skærmstørrelse kompatibilitet | 787,4 – 7721,6 mm (31 – 304″) |
| Projiceringsafstand | 0,88 – 14,29 m |
| Projektionsafstand (bred) | 0,9 – 8,9 m |
| Projektionsafstand (tele) | 1,4 – 14,3 m |
| Kontrastforhold (dynamisk) | 16000:1 |
| Projektor lysstyrke | 4100 ANSI lumens |
| Projektionsteknologi | 3LCD |
| Projektor indbygget opløsning | 1080p (1920×1080) |
| Kontrastforhold (typisk) | 16000:1 |
| Naturligt aspektforhold | 16:9 |
| Antal farver | 1,07 milliarder farver |
| Projektor lysstyrke (økonomisk tilstand) | 2300 ANSI lumens |
| Trapezkorrektion, horisontal | -30 – 30° |
| Trapezkorrektion, vertikal | ±30° |
| Matrix størrelse | 1,57 cm (0.62″) |
Lyskilde
| Lyskilde type | Lampe |
| Levetid for lyskilde | 6500 t |
| Levetid for lyskilde (økonomisk tilstand) | 17000 t |
| Lampe type | UHE |
| Lampeeffekt | 230 W |
Linsesystem
| Fokus | Vejledning |
| Brændviddeområde | 18.2 – 29.1 mm |
| Blændeområde (F-F) | 1,51 – 1,77 |
| Zoom kapacitet | Ja |
| Zoom type | Vejledning |
| Zoomforhold | 1:1.62 |
| Throw-forhold | 1.30 – 2.09:1 |
Video
| Format til analogt signal | Ikke understøttet |
| Full HD | Ja |
| 3D | Ingen |
| Videobehandling | 10 Bit |
| Farvetilstande for video | Blackboard, Biograf, Dynamisk, Præsentation, sRGB |

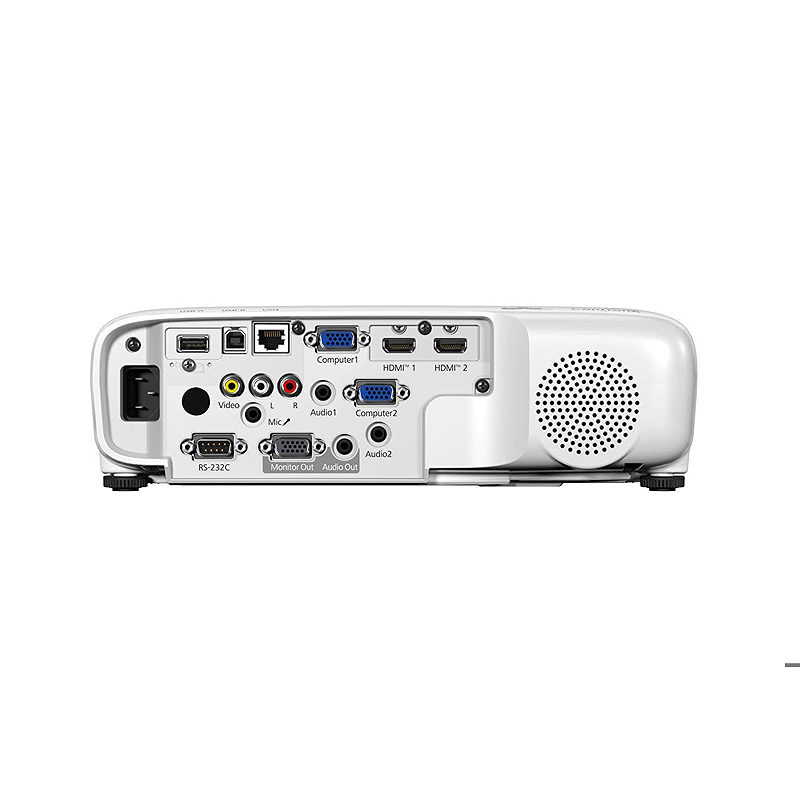

Porte & Grænseflader
| Serviceporttype | USB Type-A |
| Antal USB 2.0 type-A-porte | 1 |
| Mikrofonindgang | Ja |
| Seriel grænsefladetype | RS-232C |
| Antal VGA-porte (D-sub) | 2 |
| Antal HDMI-porte | 1 |
| Sammensat videoindgang | 1 |
| DVI-port | Ingen |
| AC (strøm) indgang | Ja |
Netværk
| Smart TV | Ingen |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN-datahastigheder | 10,100 Mbit/s |
| Wi-Fi | Ja |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Funktioner
| Interaktiv | Ingen |
| Støjniveau (økonomisk tilstand) | 28 dB |
| HDCP | Ja |
| Støjniveau | 37 dB |
| Oprindelsesland | Filippinerne |
| Beskyttelse af adgangskode | Ja |
Multimedie
| Indbyggede højttaler(e) | Ja |
| Udgangseffekt (RMS) | 16 W |
Design
| Markedspositionering | Præsentation |
| Produktfarve | Hvid |
| Placering | Loft, Desktop |
| Slot til kabellås | Ja |
| Kabellåseslids type | Kensington |
Display
| Indbygget skærm | Ingen |
Strømstyring
| Strømkilde | Vekselstrøm |
| Strømforbrug (typisk) | 284 W |
| Strømforbrug (strømbesparelse) | 0,3 W |
| Strømforbrug (økonomi tilstand) | 181 W |
| Vekselstrømsindgangsspænding | 100 – 240 V |
| Vekselstrømsindgangsfrekvens | 50 – 60 Hz |
Driftsbetingelser
| Opbevaringstemperatur (T-T) | -10 – 60 °C |
| Relativ luftfugtighed ved opbevaring (H-H) | 10 – 90% |
Vægt & størrelser
| Bredde | 309 mm |
| Dybde | 293 mm |
| Højde | 105 mm |
| Vægt | 3,1 kg |
| Pakkebredde | 380 mm |
| Pakkedybde | 390 mm |
| Pakkehøjde | 175 mm |
| Pakkevægt | 4,49 kg |
Emballage indhold
| Fjernbetjening inkluderet | Ja |
| Batterier inkluderet | Ja |
Tekniske detaljer
| Andre funktioner | A/V mute, AV Mute Slide, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Home Screen, JPEG Viewer, Long lamp life, Microphone input, Network projection, OSD copy function, PC Free, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App |
Andre funktioner
| Mulighedstype | Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Spare lamp, Suspension adapter |
| Grænseflade | USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (2x), Composite in, Miracast, Jack plug out, Jack plug in, Cinch audio in, Microphone input, Apple AirPlay 2 |
| Kontrolpanel | 0.62 inch with C2 Fine |
| Understøttede netværksprotokoller | HTTPS, IPv6, SNMP |
| Sikkerhedsfunktioner | Kensington lock, Padlock, Security cable hole, Password protection |
